PRODUCTS

Motor Blind System

Future-oriented control system with new design and
functions for the era of convenient automatic blind control
  • One remote control can control 15 channels at the same time using an electronic control method.
  • It can easily control a difficult location without moving from a long distance away with an embedded receiver.
  • Because hands do not touch the product directly, it gets less dirty and damaged, resulting in extended service life.
  • It is the smallest slim product with a 25 cylindrical motor.

※ Type

DG 35LE
  • Wood Blind
  • Large Roll Blind
 <Motor> <Remote Control> A. Charger Type
B. Sunlight Type
Model Name KC Certification Number Torque
㎚		 Rev Count
rpm		 Battery
Capacity		 Frequency
㎒		 Motor Standard
㎜		 Maximum Weight
㎏		 Minimum Length
m		 Maximum Length
m		 Maximum Height
m		 Maximum Area
㎡		 Operation Noise
㏈		 Rated Voltage
v		 Motor Length
㎜		 Types of Charging System
DG35LE MSIP-REI-DgB-DG35LE 3 28 260 447 35 8 0.75 2.5 12 20 50 12 675 Charger Type/Sunlight Type
Touch & Drag
DG 25LE
  • Combi Blind
  • Roll Blind
  • Triple Shade
 <Motor> <Remote Control> A. Charger Type
B. Sunlight Type
Model Name KC Certification Number Torque
㎚		 Rev Count
rpm		 Battery
Capacity		 Frequency
㎒		 Motor Standard
㎜		 Maximum Weight
㎏		 Minimum Length
m		 Maximum Length
m		 Maximum Height
m		 Maximum Area
㎡		 Operation Noise
㏈		 Rated Voltage
v		 Motor Length
㎜		 Types of Charging System
DG25LE MSIP-REM-DgB-DG25LE 1.1 40 200 447 25 3.3 0.54 2.5 6 8 42 12 443 Charger Type/Sunlight Type
Touch & Drag
DG 25TE
  • Combi Blind
  • Roll Blind
  • Triple Shade
 <Motor> <Remote Control>
Model Name KC Certification Number Torque
㎚		 Rev Count
rpm		 Battery
Capacity		 Frequency
㎒		 Motor Standard
㎜		 Maximum Weight
㎏		 Minimum Length
m		 Maximum Length
m		 Maximum Height
m		 Maximum Area
㎡		 Operation Noise
㏈		 Rated Voltage
v		 Motor Length
㎜		 Types of Charging System
DG25TE MSIP-REI-DgB-DG25TE 1.5 32 - 447 25 4.2 0.55 2.5 6 10 42 220 445 Wired Always Power Supply
Touch & Drag
DC 2702
 <Remote Control>
  • DC 2702-15 Channel Remote Control
  • Control Distance: Outside 200m /Inside 35m
  • Power Supply: 1X3V Battery CR2430
  • Transmit Frequency: 447MHz
  • Battery Life: Up to two years
  • Size: 130mmX45mmX11.5mm
DC 1288
 <Sunlight Panel>
  • DC 1288 – Rectangle sunlight panel
  • Operational Temperature: -20 ~ 80℃
  • For 12V charging/ Can be operated up to 200 times when fully charged
  • Service Life: 10 years
  • Output Voltage: 18V l Output: 5W
  • Size: 75mmX44mmX12mm
Touch & Drag

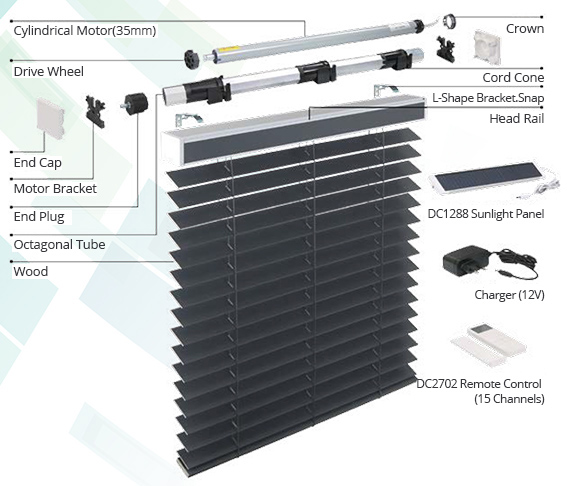

※ MOTORIZED WOODEN VENETIAN BLINDS
      Wood Blind Electronic Diagram

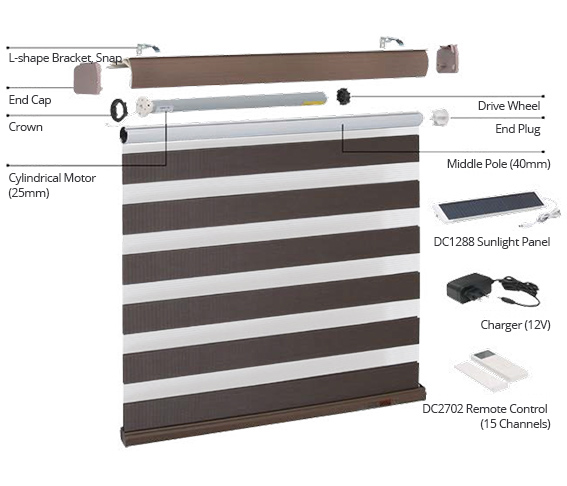

※ MOTORIZED COMBI/ROLL/TRIPLE BLINDS
      Combi/Roll/Triple Electronic Diagram

  • It maximizes practicality and convenience, which are the advantages of the electronic system by realizing all of low noise, powerful torque and fast rev count.
  • The window area has been widening as interiors become more diverse and luxurious so by blocking ultraviolet rays and solar radiation, reducing glare, protecting privacy and saving energy, it creates a refreshing indoor environment and ensures a comfortable life and a luxurious image, thus enhancing the level of the interior and value of a user.
